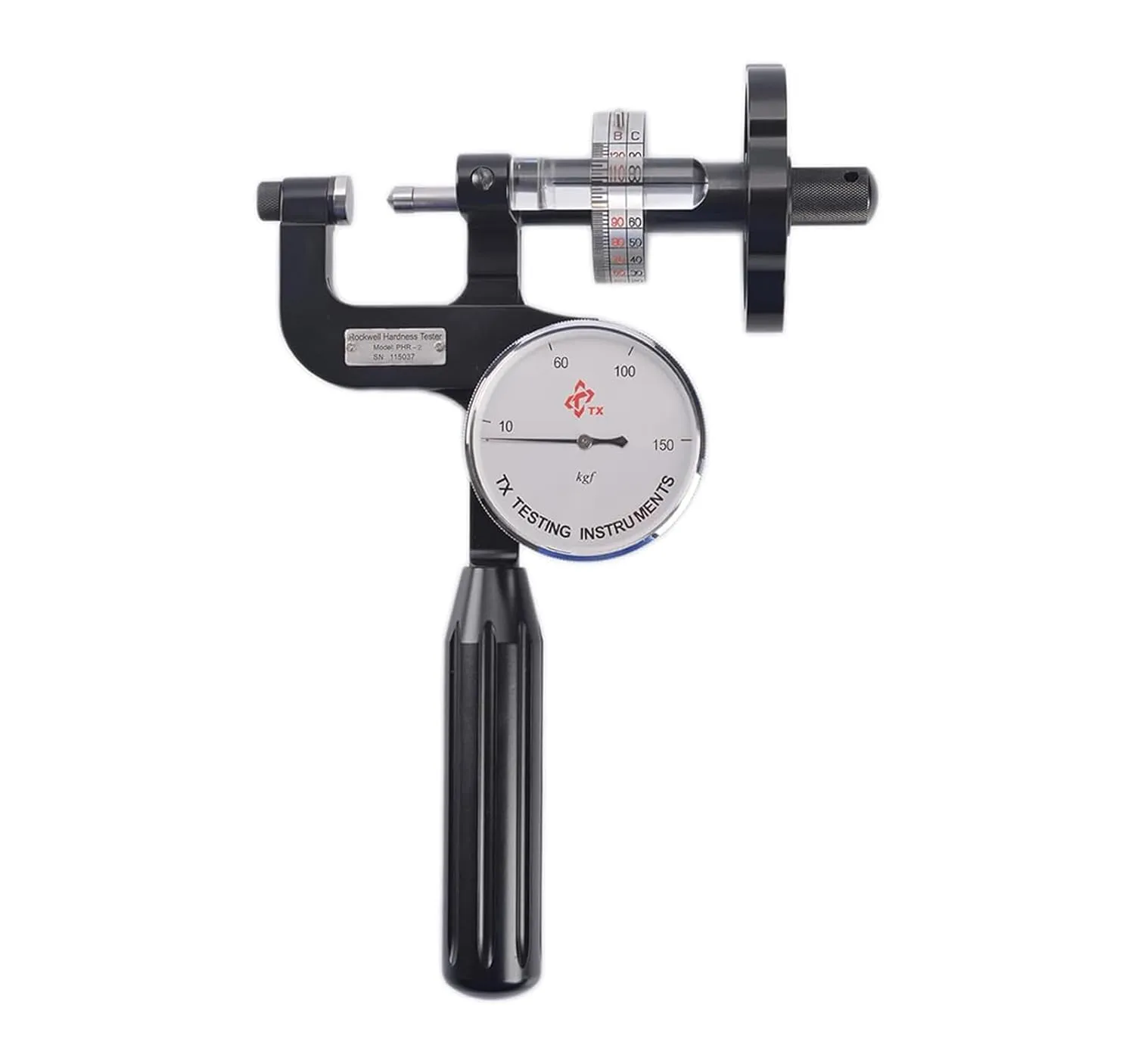

- Miniaturization of Rockwell hardness tester, the smallest model weighs only 0.8kg and the operation is similar to that of a micrometer.
- The testing principle and accuracy comply with ISO 6508 and ASTM E110, tested by National Institute of Metrology with error less than 1.5HRC, same as the bench type.
- The instrument is composed of tester and bench stand, can be used on table or on site in the factory.
- Can test many kinds of thin, small, long and irregular parts that cannot be tested by the bench type.
- Well suits for testing the workpieces with small supporting surface.
- Traceable standard hardness block.
- Indenter inspected with standard Rockwell hardness tester.
- Test force calibrated with load cells directly traceable to national secondary benchmark.
Introduction:
1. Miniaturization of Rockwell hardness tester, the smallest model weighs only 0.8kg and the operation is similar to that of a micrometer.2. The testing principle and accuracy comply with ISO 6508 and ASTM E110, tested by National Institute of Metrology with error less than 1.5HRC, same as the bench type.
3. The instrument is composed of tester and bench stand, can be used on table or on site in the factory.
4. Can test many kinds of thin, small, long and irregular parts that cannot be tested by the bench type.
5. Well suits for testing the workpieces with small supporting surface.
6. Traceable standard hardness block.
7. Indenter inspected with standard Rockwell hardness tester.
8. Test force calibrated with load cells directly traceable to national secondary benchmark.
Main Technical Parameters:
Initial Test Force: 10kgTotal Test Force: 60kg, 100kg, 150kg
Force Applying Method: By screw
Indenter: 120 diamond cone Φ1.588mm carbide ball
Accuracy: Meets the requirements of ISO6508
Resolution: 0.5HR
Testing Range: HRA, HRB, HRC… HRV, etc. 15 scales.
Application: All metals, including steel, cast iron, copper, aluminum, nickel, titanium, lead, tin, carburized steel, carbide alloy, etc.
Standard Package:
1. Tester2. Bench stand
3. 120 diamond cone indenter
4. Φ1.588mm carbide ball indenter
5. 3 Rockwell test blocks
6. Flat anvil
7. V anvil
8. Extensions
9. Carrying case
Model Selection:
PHR-1 ModelOpening Size (W×D):25mm×25mm
PHR-2 Model
Opening Size (W×D):50mm×50mm
- Is Discontinued By Manufacturer : No
- Package Dimensions : 26.38 x 16.5 x 10 inches; 11.02 Pounds
- Date First Available : July 14, 2013
- Manufacturer : TX
